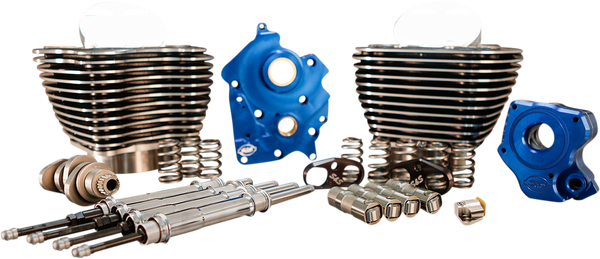

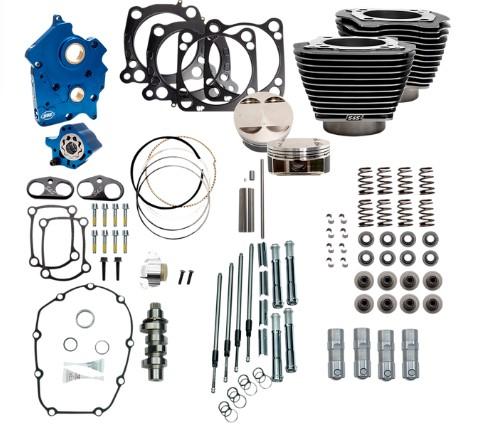

S&S Big Bore 128" Kit för H-D M8. / 128" Power Package Engine Performance Kit. S&S USA #310-1107B
- Big-bore bolt-on kit increases 114"/117" with 4-1/2" stroke M-Eight with no case machining required
- 4-1/4" bore cylinders with 11:1 forged pistons
- S&S oil pump/cam plate with blue anodized finish
- Passage plugs are removable for servicing
- Independent scavenge sections for flywheel cavity and cam chest
- Debris screen in both scavenge pickups
- Magnet in cam chest to help prevent debris from entering the oil pump
- Increased oil flow capacity on both the oil feed and scavenge side
- Adjustable pressure relief valve can be adjusted with the unit installed in the engine
- Quickee pushrods with chrome pushrod tubes
- S&S premium tappets
- S&S hard-anodized, black coated tappet cuffs are billet aluminum construction
- Improve tappet stability in high-lift, high-rpm situations
- S&S 550 cams designed for big bore applications
- S&S valve springs work with cams up to .605" lift
- High-performance conical single-wire spring design
- All necessary gaskets, bearings, and hardware for bolt-on installation is included
- Made in the U.S.A.
- Not recommended for Tri-Glide or other three wheel models including conversion due to lugging nature of these bikes.
Electra Glide Ultra Limited - FLHTK • 2017-2023
Electra Glide Ultra Limited CVO/SE - FLHTKSE • 2017-2021
Electra Glide Ultra Limited Low - FLHTKL • 2017-2019
Road Glide CVO/SE - FLTRXSE • 2022
Road Glide Limited - FLTRK • 2020-2023
Road Glide Limited CVO/SE - FLTRKSE • 2022-2023
Road Glide ST - FLTRXST • 2022
Road Glide Ultra - FLTRU 2017-2019
Softail Low Rider El Diablo - FXRST 2022
Softail Low Rider S - FXLRS 2022-2023
Softail Low Rider ST - FXLRST 2022-2023
Street Glide CVO/SE - FLHXSE 2022
Street Glide ST - FLHXST 2022-2023
Tri-Glide CVO/SE - FLHTCUTGSE 2022
