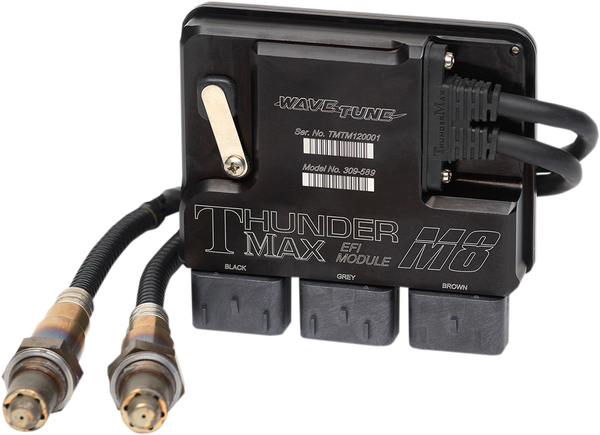

ThunderMax Engine Control System (ECM) with Integrated Auto Tune System. Thundermax, USA #309-589

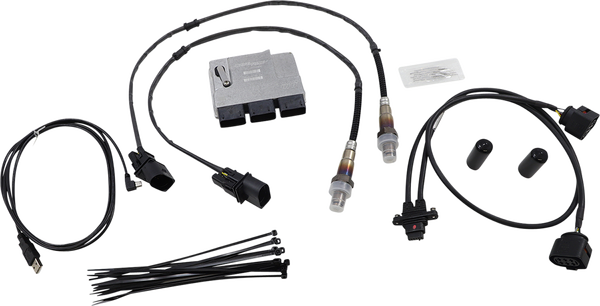

- Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
- Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.) - load the map of your choice and the integral auto-tune will do the rest
- Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
- Utilizes wide-band O² sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions
- ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
- Easy installation: replace the factory ECM, install new O² sensors and harness, load the correct map for your bike, and ride
- New maps, software, firmware updates, map analysis and tech support available online at no charge
- Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
- Works with all popular exhaust systems and is compatible with high-performance camshafts
- Rider can adjust idle speed, rev limit and speedometer calibration
- Improves throttle response, exhaust sound and driveability
- Supports turbo, nitrous and supercharger applications
- Does not require dyno tuning
- Made in the USA
- Because of possible clearance issues, some aftermarket exhaust systems may require modifications or relocation of their O² sensor port bungs.
Softail Breakout - FXBR • 2018-2019
Softail Breakout 114 - FXBRS • 2018-2020
Softail Deluxe - FLDE • 2018-2020
Softail Fat Bob - FXFB • 2018-2019
Softail Fat Bob 114 - FXFBS • 2018-2020
Softail Fat Boy - FLFB • 2018-2019
Softail Fat Boy 114 - FLFBS • 2018-2020
Softail FXDR 114 - FXDRS • 2019-2020
Softail Heritage Classic - FLHC 2018-2020
Softail Heritage Classic 114 - FLHCS 2018-2020
Softail Low Rider - FXLR 2018-2020
Softail Low Rider S - FXLRS 2020
Softail Slim - FLSL 2018-2020
Softail Sport Glide - FLSB 2018-2020
Softail Standard - FXST 2020
Softail Street Bob - FXBB 2018-2020
